[Solved] Page view is now distorted and tiny on all docs

Discuss setup / installation issues - Add a spell checker, Language pack?
Post Reply
Flummoxed1
Posts: 8
Joined: Sun Oct 25, 2020 2:10 pm

[Solved] Page view is now distorted and tiny on all docs

Post by Flummoxed1 »

I am having difficulty, my page view has ruler marks all over it and the print is tiny/ How do I get back to normal view.
Attachments

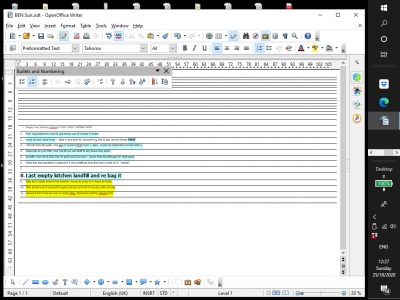

Screenshot 2020-10-25 12.27.39.png
Last edited by Hagar Delest on Sun Oct 25, 2020 9:31 pm, edited 2 times in total.
Reason: tagged solved
apache open office 3.1 on chrome
User avatar
RoryOF
Moderator
Posts: 35210
Joined: Sat Jan 31, 2009 9:30 pm
Location: Ireland

Re: page view is now distorted and tiny on all docs

Post by RoryOF »

Try /View /Zoom and select 100% or pull slider in bottom right of OO window to right, or enter 100% into the % box at bottom right of OO Windows. Adjust scaling to a value with which you feel comfortable, but 100% is a good start.

Come back with more information if all is not as you wish.
Apache OpenOffice 4.1.16 on Xubuntu 24.04.4 LTS
Flummoxed1
Posts: 8
Joined: Sun Oct 25, 2020 2:10 pm

Re: page view is now distorted and tiny on all docs

Post by Flummoxed1 »

what do you mean by 00? every document is showing like this now so it must be a page view I think im trying to up load a screeen shot but it keeps saying its too big a file and i cant condense it.
apache open office 3.1 on chrome
User avatar
RoryOF
Moderator
Posts: 35210
Joined: Sat Jan 31, 2009 9:30 pm
Location: Ireland

Re: page view is now distorted and tiny on all docs

Post by RoryOF »

OO is shorthand for OpenOffice.
Apache OpenOffice 4.1.16 on Xubuntu 24.04.4 LTS
User avatar
Hagar Delest
Moderator
Posts: 33630
Joined: Sun Oct 07, 2007 9:07 pm
Location: France

Re: Page view is now distorted and tiny on all docs

Post by Hagar Delest »

With a screenshot:
[Solved] Type size of text document is very small.

Please add [Solved] at the beginning of the title in your first post (top of the topic) with the *EDIT button if your issue has been fixed.
LibreOffice 25.2 on Linux Mint Debian Edition (LMDE 7 Gigi) and 25.2 portable on Windows 11.
User avatar
RoryOF
Moderator
Posts: 35210
Joined: Sat Jan 31, 2009 9:30 pm
Location: Ireland

Re: Page view is now distorted and tiny on all docs

Post by RoryOF »

Looking at your screenshot I suggest you select all the text (Ctrl A) and then press Ctrl U to turn off underlining. You may need also to go to the Font Effects tab in Preformatted Text paragraph style to select "Without" under the "Underlining" selection.

I note your screen magnification is at 20%; you may need to follow my earlier advice and move to 100%, or some other selection that best suits you.
Apache OpenOffice 4.1.16 on Xubuntu 24.04.4 LTS
Flummoxed1
Posts: 8
Joined: Sun Oct 25, 2020 2:10 pm

Re: Page view is now distorted and tiny on all docs

Post by Flummoxed1 »

nope none of that helped - I seem to have pressed a wrong key somewhere that has made all my docs appear like this but this particular one seems to be an odt file whatever that is. the lines were not on the doc when I typed it. ive tried deleting the doc and they are all coming up the same even new docs.

is it possible to retore a document to an earlier time ie yesterday, / this morning?
apache open office 3.1 on chrome
User avatar
RoryOF
Moderator
Posts: 35210
Joined: Sat Jan 31, 2009 9:30 pm
Location: Ireland

Re: Page view is now distorted and tiny on all docs

Post by RoryOF »

Please upload a sample file for analysis. The upload tab is below the Submit button on PostReply and Full Editor windows, not on QuickReply window.
Apache OpenOffice 4.1.16 on Xubuntu 24.04.4 LTS
Flummoxed1
Posts: 8
Joined: Sun Oct 25, 2020 2:10 pm

Re: Page view is now distorted and tiny on all docs

Post by Flummoxed1 »

I think this is what you asked for.
Attachments
BEN Sun.odt
(21.84 KiB) Downloaded 202 times
apache open office 3.1 on chrome
User avatar
RoryOF
Moderator
Posts: 35210
Joined: Sat Jan 31, 2009 9:30 pm
Location: Ireland

Re: Page view is now distorted and tiny on all docs

Post by RoryOF »

Your paragraph styles are all set to use bottom borders, of a fine double line. You need to change these.
Apache OpenOffice 4.1.16 on Xubuntu 24.04.4 LTS
Flummoxed1
Posts: 8
Joined: Sun Oct 25, 2020 2:10 pm

Re: Page view is now distorted and tiny on all docs

Post by Flummoxed1 »

could u give me explicit instructions plse i have no idea what im doing
apache open office 3.1 on chrome
User avatar
Hagar Delest
Moderator
Posts: 33630
Joined: Sun Oct 07, 2007 9:07 pm
Location: France

Re: Page view is now distorted and tiny on all docs

Post by Hagar Delest »

Ctrl+A to select all
Ctrl+M to remove formatting.
You should try to reset your OpenOffice user profile. It will clear your template.
LibreOffice 25.2 on Linux Mint Debian Edition (LMDE 7 Gigi) and 25.2 portable on Windows 11.
Flummoxed1
Posts: 8
Joined: Sun Oct 25, 2020 2:10 pm

Re: Page view is now distorted and tiny on all docs

Post by Flummoxed1 »

thank you I will try that.
apache open office 3.1 on chrome
User avatar
RoryOF
Moderator
Posts: 35210
Joined: Sat Jan 31, 2009 9:30 pm
Location: Ireland

Re: Page view is now distorted and tiny on all docs

Post by RoryOF »

In addition to what Hagar suggests, you should select /Format /Styles and formatting.

In the window that opens, click on first icon from left, right click on Default and choose Modify. Select the Borders tab, click on the leftmost icon under "Line Arrangement" (top left) Scroll up the style box under the "Line" heading (centre) and select "none". Uncheck "Merge with next paragraph" under "Properties" (bottom left). Click OK.

Repeat in the same Styles and Formatting window for paragraph styles Preformatted text" and "Text body"
Apache OpenOffice 4.1.16 on Xubuntu 24.04.4 LTS
User avatar
RoryOF
Moderator
Posts: 35210
Joined: Sat Jan 31, 2009 9:30 pm
Location: Ireland

Re: Page view is now distorted and tiny on all docs

Post by RoryOF »

May I take it that you have now fixed the minuscule size?
Apache OpenOffice 4.1.16 on Xubuntu 24.04.4 LTS
Flummoxed1
Posts: 8
Joined: Sun Oct 25, 2020 2:10 pm

Re: Page view is now distorted and tiny on all docs

Post by Flummoxed1 »

nope still trying.
Repeat in the same Styles and Formatting window for paragraph styles Preformatted text" and "Text body" can u pad this out a bit,. I cant find paragraph styles preformatted text or text body where do I find them plse
apache open office 3.1 on chrome
Bill
Volunteer
Posts: 8952
Joined: Sat Nov 24, 2007 6:48 am

Re: Page view is now distorted and tiny on all docs

Post by Bill »

Look in the lower right corner of the window in the screen shot you uploaded. It shows "20%" zoom setting and the slider next to the setting is all the way to the left. Move the slider to the right to increase the zoom.
AOO 4.1.14 on Ubuntu MATE 22.04
User avatar
Hagar Delest
Moderator
Posts: 33630
Joined: Sun Oct 07, 2007 9:07 pm
Location: France

Re: Page view is now distorted and tiny on all docs

Post by Hagar Delest »

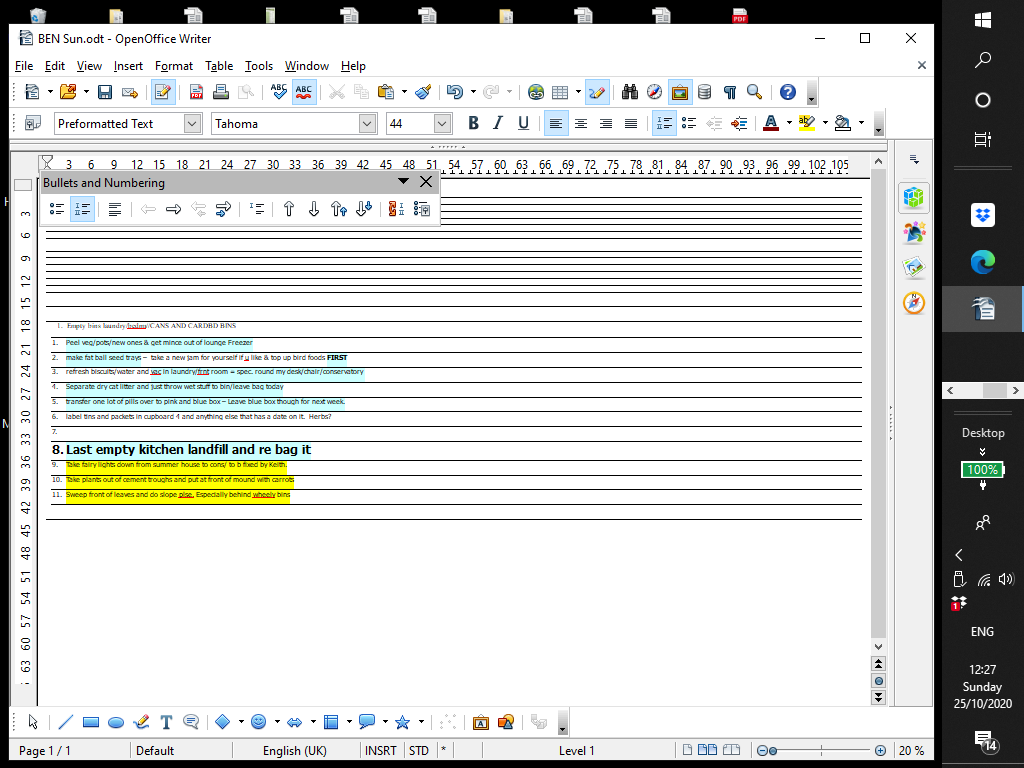

From your screenshot:
LibreOffice 25.2 on Linux Mint Debian Edition (LMDE 7 Gigi) and 25.2 portable on Windows 11.
User avatar
RoryOF
Moderator
Posts: 35210
Joined: Sat Jan 31, 2009 9:30 pm
Location: Ireland

Re: Page view is now distorted and tiny on all docs

Post by RoryOF »

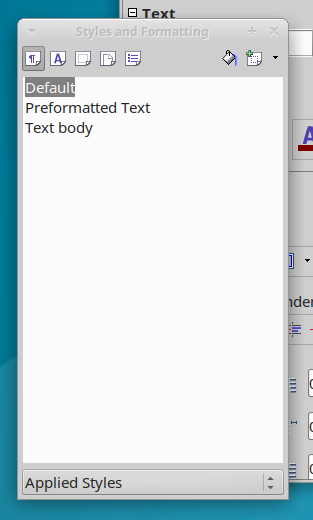

Styles and Formatting.png
Apache OpenOffice 4.1.16 on Xubuntu 24.04.4 LTS
Flummoxed1
Posts: 8
Joined: Sun Oct 25, 2020 2:10 pm

Re: Page view is now distorted and tiny on all docs

Post by Flummoxed1 »

Now sorted thank u.
apache open office 3.1 on chrome
