[Solved] Astronomy binary star chart

[marty-0750]

How do we plot the orbit of a binary star in Calc. The result should be an ellipse centered on the x/y axis

We are given a table of the:

Position-angle (PA) 0-360 degrees

Distance from the center or the separation (SEP) which is the radius vector.

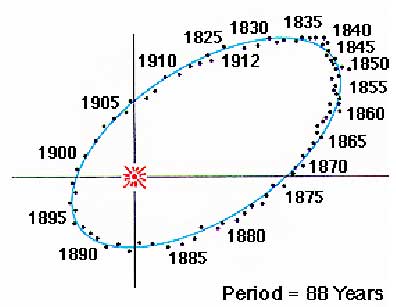

Should look something like this:


Here is a sample table for part of an orbit.

Code: Select all

Alpha Centauri
 YEAR ,   PA,  SEP
 2025 ,  9.1,  8.8
 2026 , 11.8,  9.4
 2027 , 14.2,  9.8
 2028 , 16.4, 10.2
 2029 , 18.5, 10.4
 2030 , 20.5, 10.5
 2031 , 22.6, 10.3
 2032 , 24.8,  9.8
 2033 , 27.3,  9.0
 2034 , 30.5,  7.8
 2035 , 35.0,  6.3
 2036 , 42.9,  4.5
 2037 , 61.9,  2.6
 2038 ,119.5,  1.7
 2039 ,168.2,  3.0
 2040 ,183.6,  4.9
 2041 ,190.3,  6.8
 2042 ,194.1,  8.6
 2043 ,196.6, 10.3
 2044 ,198.4, 11.9
 2045 ,199.8, 13.2
 2046 ,201.0, 14.5
 2047 ,201.9, 15.6
 2048 ,202.8, 16.6
 2049 ,203.6, 17.5
 2050 ,204.3, 18.3
 2051 ,204.9, 19.0
 2052 ,205.5, 19.6
 2053 ,206.0, 20.1
 2054 ,206.6, 20.6
 2055 ,207.1, 21.0
 2056 ,207.6, 21.2
 2057 ,208.1, 21.5

[FJCC]

Well, off the top of my head, you have tan(PA) = y/x and SEP^2 = x^2 + y^2. You should be able to solve for x and y and plot the results.

[floris v]

Like x = SEP*cos (PA) and y = SEP*sin(PA), convert PA to radians.

[Lupp]

I found the time to adapt an old sheet of mine to this example.
It uses Option VBAsupport 1 to simplify passing of parameters, and will therefore only work under (not too old) LibreOffice.
Making it independent of VBAsupport isn't difficult, however.

nextPolyLine.ods

(58.53 KiB) Downloaded 101 times

[marty-0750]

Neat polylines!

Thankyou for the tips

Now that I have applied the conversion to the circular plot I get the ellipse required and it matches the published ones. The graph however needs to be rotated 90 degrees clockwise to conform with astronomical convention as I attempted on the right. That is,north-down and east-left. I rotated the graph in this respect along with the axes labels but the title stubbornly remains upright on the right. Any tips?

Although one can hover the cursor over a data point and peek at the value, I would rather have every 5th (or so) data point labeled with the year, again as in the astronomical convention. How can I do this?

AlphaCent spreadsheet.jpg (105.36 KiB) Viewed 4791 times

[Lupp]

PLEASE, attach "the real thing" (.ods file here) instead of pasting an image.

[Hagar Delest]

I would rather have every 5th (or so) data point labeled with the year, again as in the astronomical convention. How can I do this?

Add a new series with only the years to be shown and display the labels for that series.

[marty-0750]

The ODS file

Alpha Cent orbit.ods

(44.98 KiB) Downloaded 69 times

[Hagar Delest]

Lupp and I made our homework and here is the result. Lupp for the mathematical coordinates rotation and I for the second series trick to show the dates.
I let Lupp upload his file if he wishes.


Please add [Solved] at the beginning of the title in your first post (top of the topic) with the ✎ button if your issue has been fixed.

[MrProgrammer]

The graph however needs to be rotated 90 degrees …

Rotate the chart's data 𝛑/2 radians by swapping the X-value and Y-value ranges in Format → Data Ranges → Data Series and reversing the Y-axis: Format → Axes → Y axis → Scale → Reverse direction.

If this solved your problem please go to your first post use the Edit ✏️ button and add [Solved] to the start of the Subject field. Select the green checkmark icon at the same time.
