[Solved] Template fields moves in new slide

Discuss the presentation application
Locked
Tom L
Posts: 6
Joined: Sun Jan 19, 2025 11:46 pm

[Solved] Template fields moves in new slide

Post by Tom L »

I created a template with a background, a title field and a body field.

When I create a new presentation from this template the first slide is good. But on the next slide, the title field has moved upwards. I'm lost on how to correct this.
Last edited by MrProgrammer on Sat Feb 01, 2025 4:40 pm, edited 1 time in total.
Reason: Tagged ✓ [Solved] Box positioned wrong in master slide
Open Office 4.1.6
Windows 7
User avatar
RoryOF
Moderator
Posts: 35066
Joined: Sat Jan 31, 2009 9:30 pm
Location: Ireland

Re: Template fields moves in new slide

Post by RoryOF »

It would be helpful if you uploaded your template, also screenshots showing the first and second slides. Remove or munge any sensitive information before uploading, of course.
Apache OpenOffice 4.1.15 on Xubuntu 22.04.5 LTS
Tom L
Posts: 6
Joined: Sun Jan 19, 2025 11:46 pm

Re: Template fields moves in new slide

Post by Tom L »

Here is the template file, a screen shot from the template and a screen shot once the template is used in a presentation.

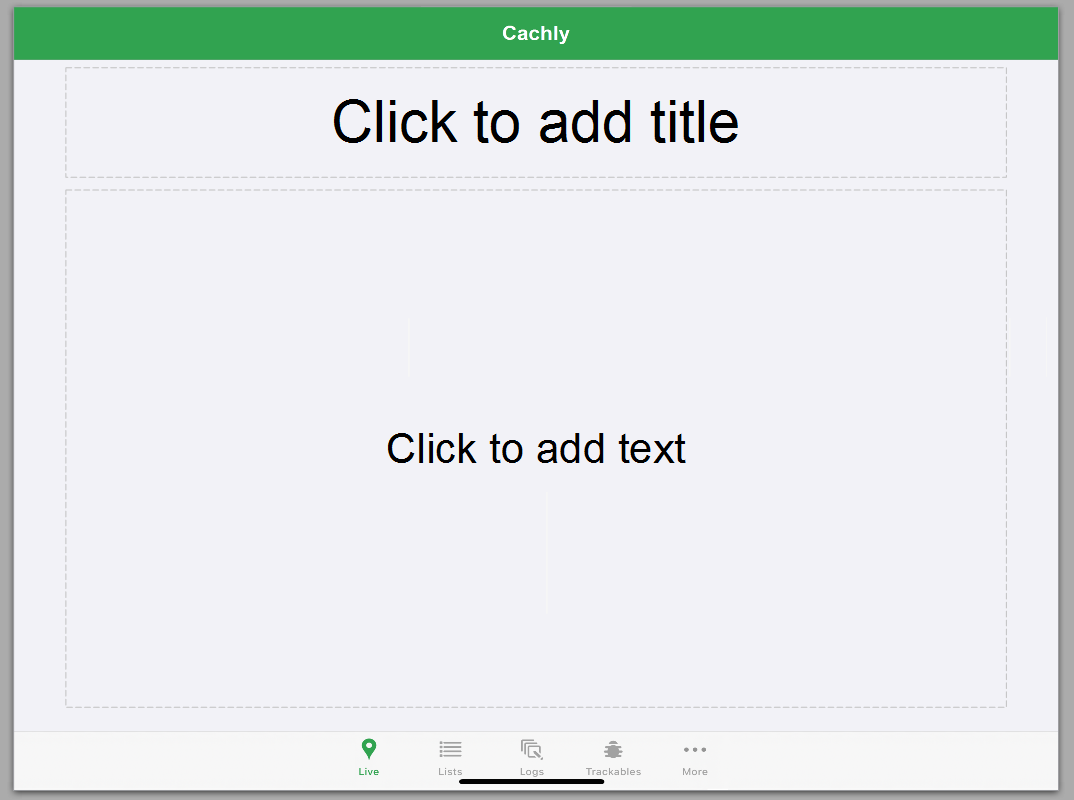

Screen capture of the template
Screen capture of the template
From Template.png (43.12 KiB) Viewed 8438 times
Screen capture of the template being used in a presentation
Screen capture of the template being used in a presentation
From Presentation.png (42.98 KiB) Viewed 8438 times
Cachly Template.otp
Template file
(102.81 KiB) Downloaded 63 times
Open Office 4.1.6
Windows 7
User avatar
Hagar Delest
Moderator
Posts: 33401
Joined: Sun Oct 07, 2007 9:07 pm
Location: France

Re: Template fields moves in new slide

Post by Hagar Delest »

It seems there is a difference between your master slide and the first slide. If you click on a layout, then the field moves to the position set in the master slide.
I think that you've moved the field in that first page after having designed the master slide.
Move the field in the master slide and that should be fine.

Please add [Solved] at the beginning of the title in your first post (top of the topic) with the button if your issue has been fixed.
LibreOffice 25.2 on Linux Mint Debian Edition (LMDE Faye) and 24.8 portable on Windows 11.
Tom L
Posts: 6
Joined: Sun Jan 19, 2025 11:46 pm

Re: Template fields moves in new slide

Post by Tom L »

The template has the field where I want it.

Here's the steps I'm doing.
Create a new
My Presentation.odp
My presentation
(104.12 KiB) Downloaded 78 times
presentation from my template.
I add some header text.
I add some main body text.
All is good.

I create a new slide.
This is when the header text box moves up.

I looked at the "Position and Size" dialog.
From the first slide which is positioned correctly;
X .55
Y .64
Width 9.92
Height 1.16 (greyed out, read only?)

From the second slide which has the moved text box
X .55
Y .33
Width 9.92
Height 1.38 (greyed out, read only?)
Open Office 4.1.6
Windows 7
User avatar
Hagar Delest
Moderator
Posts: 33401
Joined: Sun Oct 07, 2007 9:07 pm
Location: France

Re: Template fields moves in new slide

Post by Hagar Delest »

Tom L wrote: Wed Jan 22, 2025 4:13 am The template has the field where I want it.

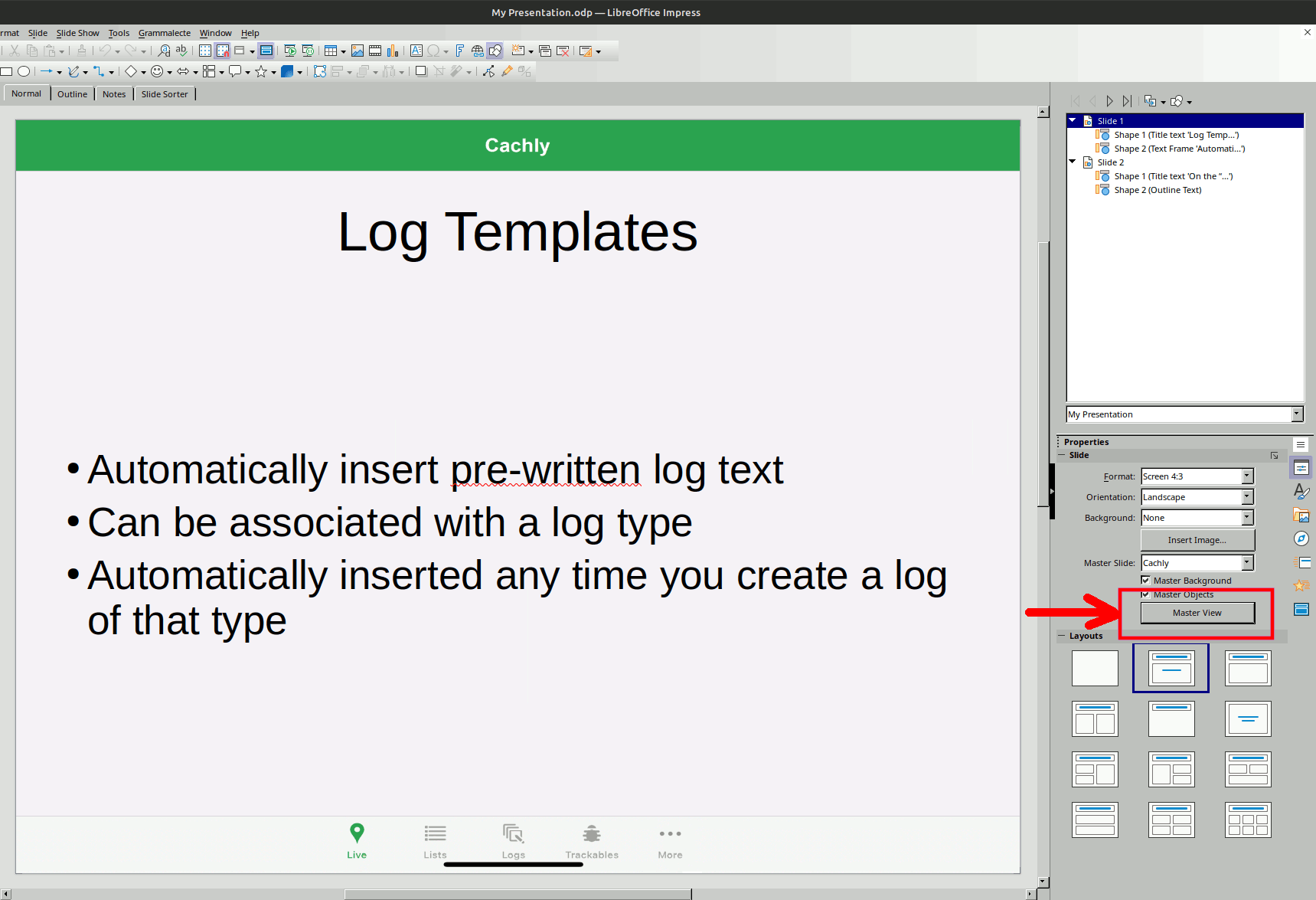

It doesn't seem so. The field has to be correctly located in the master slide. Currently, if you select the first slide and click on a layout slide in the Sidebar, then your field will move to the position set in the master slide:

Change the location of the field in the master slide and then all your slides will be fine.
If you are lost, please tell what you don't manage to do.
LibreOffice 25.2 on Linux Mint Debian Edition (LMDE Faye) and 24.8 portable on Windows 11.
Tom L
Posts: 6
Joined: Sun Jan 19, 2025 11:46 pm

Re: [Solved] Template fields moves in new slide

Post by Tom L »

"Currently, if you select the first slide and click on a layout slide in the Sidebar, then your field will move to the position set in the master slide: "

If I do this, the only thing that happens is that is the slide from the side bar that I clicked on is then display to the right.

Here is the first slide. You can see the upper text box as a light blue rectangle.
First Slide.png
First Slide.png (34.69 KiB) Viewed 8063 times
Here is the second slide. You can see the light grey dashed rectangle of the changed text box.
Second Slide.png
Second Slide.png (44.81 KiB) Viewed 8063 times
This shift happens to each additional slide I add.

I just opened the template and added a second slide to see what would happen. On the second slide the same move of the upper text box happens.
Last edited by Tom L on Wed Feb 05, 2025 10:29 pm, edited 1 time in total.
Open Office 4.1.6
Windows 7
User avatar
Hagar Delest
Moderator
Posts: 33401
Joined: Sun Oct 07, 2007 9:07 pm
Location: France

Re: [Solved] Template fields moves in new slide

Post by Hagar Delest »

And you can see that your field ha moved upward between the first and second slide.
So again, correct the position in the master slide to prevent that.
LibreOffice 25.2 on Linux Mint Debian Edition (LMDE Faye) and 24.8 portable on Windows 11.
Tom L
Posts: 6
Joined: Sun Jan 19, 2025 11:46 pm

Re: [Solved] Template fields moves in new slide

Post by Tom L »

What is the master slide? Do you mean the template?
Open Office 4.1.6
Windows 7
Tom L
Posts: 6
Joined: Sun Jan 19, 2025 11:46 pm

Re: [Solved] Template fields moves in new slide

Post by Tom L »

I have found what causes this issue.

I create a new presentation using my template.
I add text to first slide.

Prior I would then right click in the slide bar and select the "New Slide" menu item.
The new slide would then have the top text box in the wrong position.

What fixes this issue is I now hover my mouse over the last slide until a dark balloon with three options appears. I then select the "Duplicate Slide" option.
This slide has all elements correctly positioned.

Thanks for your help.
Open Office 4.1.6
Windows 7
User avatar
Hagar Delest
Moderator
Posts: 33401
Joined: Sun Oct 07, 2007 9:07 pm
Location: France

Re: [Solved] Template fields moves in new slide

Post by Hagar Delest »

Tom L wrote: Wed Feb 05, 2025 10:42 pm What is the master slide? Do you mean the template?
:roll:
So you did not bother ask about that or check the help file?

Then you will be able to move the field to the correct position.

Once moved, click outside the text box and close the master view. Then see what happens when you create a new slide or click a layout when your former slides are selected.

Tom L wrote: Wed Feb 05, 2025 11:04 pm I have found what causes this issue.
[...]
What fixes this issue is I now hover my mouse over the last slide until a dark balloon with three options appears. I then select the "Duplicate Slide" option.
This slide has all elements correctly positioned.
This is a mere workaround that does not fix the root cause.
LibreOffice 25.2 on Linux Mint Debian Edition (LMDE Faye) and 24.8 portable on Windows 11.
