[Solved] Bar Charts - plus + minuses

[paulhomewood]

Can I produce a bar chart which shows "minuses" below the line and "pluses" above?

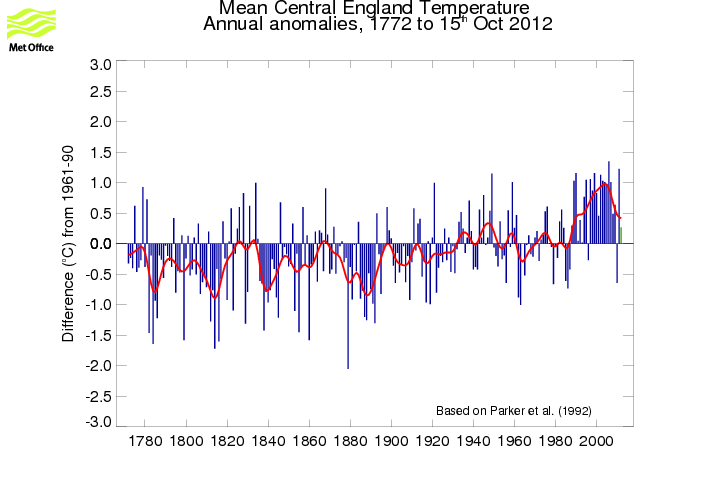

As in the attached graph from the Met Office?

http://www.metoffice.gov.uk/hadobs/hadcet/

[Hagar Delest]

Just configure your Y axis so that the zero is at the middle of the chart.
Can you upload a sample file with numbers if you're lost (see How to attach a document here)?

[paulhomewood]

I have got the Y scale as you suggest. But the bars all go down to the bottom of the grid. The Met graph in contrast has "pluses" that start at zero and go up, and minuses that start at zero and go down.
Thanks

Paul

See my version on the attachment (the graph is third along titled "1659-2011)

[Hagar Delest]

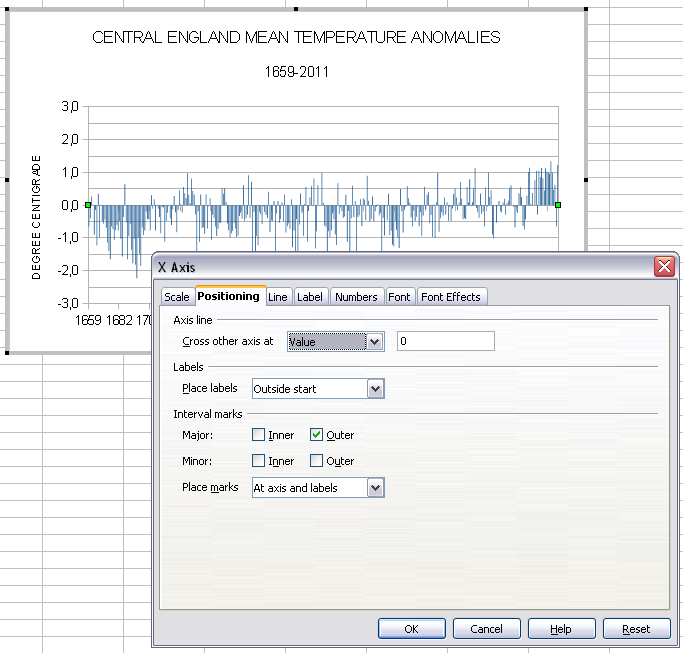

Play with the X axis positioning (Y axis to center the 0 and X axis position in its properties):

Please add '[Solved]' at the beginning of your first post title (edit button) if your issue has been fixed.

[paulhomewood]

Excellent. Thanks Hagar.
