[Solved] Avery 8160 labels not as expected

[jtandterry]

the labels for label 8160 how do i make label either modify existing label in writer or create a new label 8160 I have correct specification from avery. when i try edit existing label i changes everything around

[jtandterry]

according avery it should be
top margin 0.5
side margin 0.19
vertical pitch 1
horizonal pitch 2.75
paper size letter
paper width 8.5
label height 1
label width 2.63
numbers across 3
numbers down 10
page height 11

[jtandterry]

according libre office writer for 8160 label
horizonal pitch 2.60
vertical pitch 1.50
width 2.50
height 1.50
left margin 0.28
top margin 0.60
columns 3
rows 7
page width 8.27
page height 11.69

[RoryOF]

8180 is listed on two paper sizes - set the dropdown to Avery Letter which lists 8180, or to Avery A4; this latter lists J8160.

[jtandterry]

thanks that worked but 1st row the labels are being truncated row 2 and 3 are fine

[jtandterry]

it seems first row of labels of left margin is being truncated i have left margin at 0.19 first letter or number in row 1 is being truncated

[Bill]

Have you checked your printer specifications? Is its non-printing area wider than .19"?

[jtandterry]

It set at .19 and when it prints the 1st row and the first charcter of the row gets truncated

[John_Ha]

Set up your own label sheet with the correct label sizes - it's very easy. See Chapter 11 - Using Mail Merge in the Writer Guide which gives detailed instructions.

[MrProgrammer]

Have you checked your printer specifications? Is its non-printing area wider than .19"?

It set at .19 and when it prints the 1st row and the first charcter of the row gets truncated

You may have missed the point Bill asked about: Is its non-printing area wider than .19"? Many printers are physically incapable of printing close to the edge of the page. They need a small amount of room at the edge to grip the paper as it moves within the machine. That portion is termed the non-printing area. Its size is fixed and you cannot "set" it. Printer capabilities vary. You need to determine the non-printing area for your printer by consulting the specifications from the manufacturer.

It is best to determine the non-printing area before purchasing labels so you don't buy ones which extend into that area. However, if the non-printing area exceeds the left margin of the labels you have purchased, you will need to make adjustments for that. You can do so in the File → New → Labels → Format dialog, where you can change the left margin of your labels. Increasing the left margin of the label will push the text to the right, out of the non-printing area, but you must ensure the text to be printed does not exceed the width of the physical label, either by ensuring that your text lengths are short enough, or by decreasing the font size, or by editing a few problematic labels.
[Solved] Editing one label in mail merge labels

according avery it should be
top margin 0.5
side margin 0.19
vertical pitch 1
horizonal pitch 2.75
paper size letter
paper width 8.5
label height 1
label width 2.63
numbers across 3
numbers down 10
page height 11

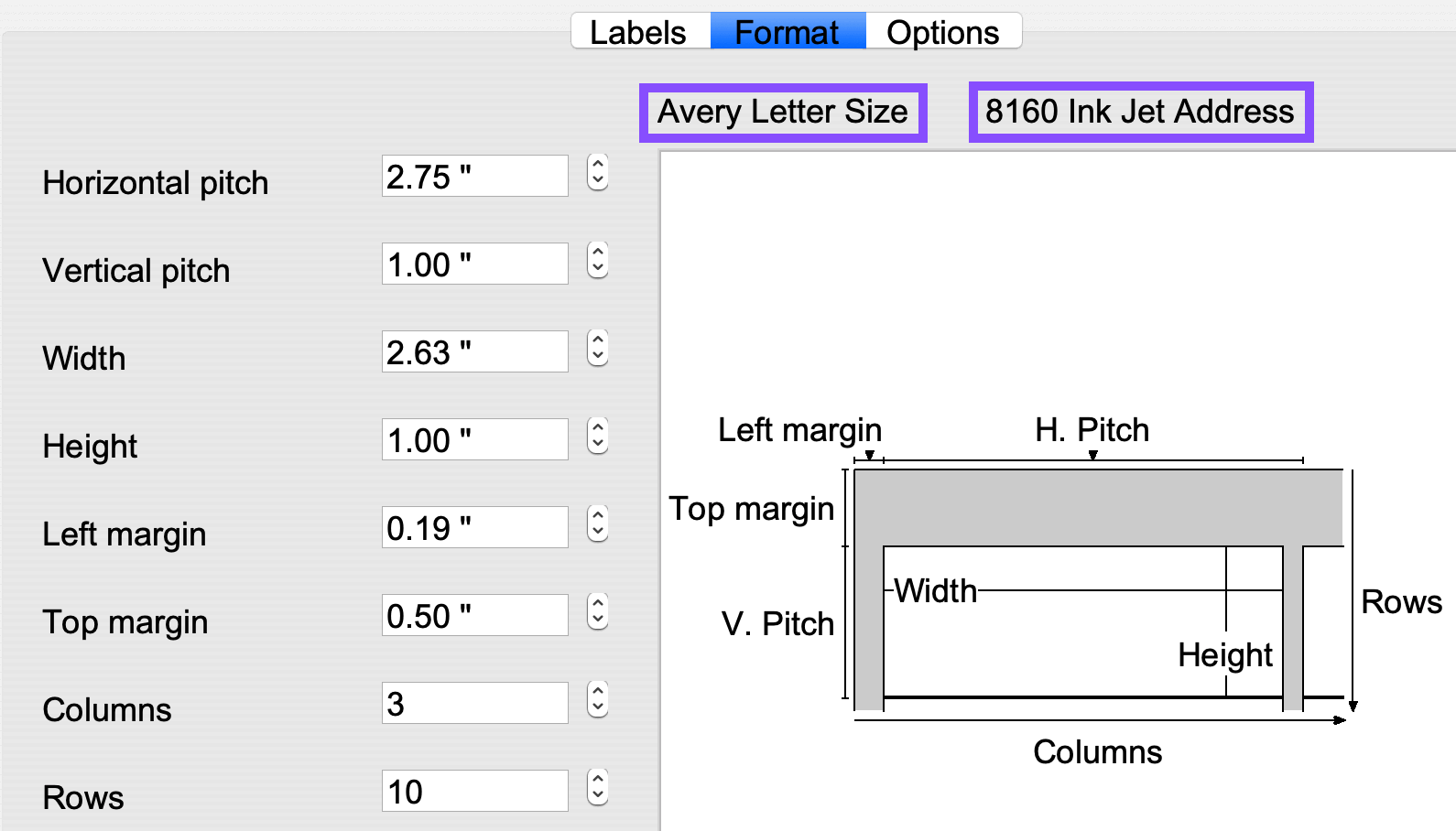

I don't see any problem with Avery Letter Size: 8160 Ink Jet Address.


If this solved your problem please go to your first post use the Edit ☐ button and add [Solved] to the start of the Subject field. Select the green checkmark icon at the same time.

[jtandterry]

thanks for explanation that worked u can close the issue out
