[Solved] Severe perf degradation on Linux

Postby _savage » Sat Dec 27, 2014 1:52 am

I’m using OO on my Mac, and using it through the Python UNO API works just fine. For example, running a loop like

Code: Select all   Expand viewCollapse view
>>> parenum = document.Text.createEnumeration()
>>> while parenum.hasMoreElements() :
...     par = parenum.nextElement()

takes about 3s for an average test document. I have then tried to do the same on a Linux server into which I ssh. OO is running headless (just like on my Mac locally) on that Linux server:

Code: Select all   Expand viewCollapse view
soffice --accept="socket,host=localhost,port=2002;urp;StarOffice.ServiceManager" --headless --invisible &

but the above loop to iterate over all paragraphs takes several minutes to complete. Note: the Python script too runs on that Linux server, so network latency should be out of the equation.

Any ideas as to why this would be so slow? I’ve noticed that even in --headless mode a Writer window opens to display the document on my Mac; I have a slight suspicion that perhaps the performance degradation results from OO trying to interact with X?

Thanks!
Last edited by Hagar Delest on Sat Jan 10, 2015 4:31 pm, edited 3 times in total.
Reason: tagged [Solved].
Mac 10.14 using LO 6.2.5.2, Gentoo Linux using LO 6.2.4.2.0 headless.
_savage

Posts: 168
Joined: Sun Apr 21, 2013 12:55 am

Re: Severe perf degradation

Postby Villeroy » Sat Dec 27, 2014 2:07 am

Your loop queries object by object over the network.
Please, edit this topic's initial post and add "[Solved]" to the subject line if your problem has been solved.
Ubuntu 18.04, no OpenOffice, LibreOffice 6.x
User avatar
Villeroy
Volunteer

Posts: 26967
Joined: Mon Oct 08, 2007 1:35 am
Location: Germany

Re: Severe perf degradation

Postby RusselB » Sat Dec 27, 2014 2:12 am

At least part of the problem will be due to the response time from the server, which is affected by the actual (not rated) connection speed.
When running the code on your own system there's no need for the code to try to access an internet connection.
While I don't know all of the possible internet connection speeds, nor the access speed of your hard drive, I highly doubt that your internet connection speed is anywhere close to your hard drive access speed.
Using my numbers, as an example, my hard drive has a rated maximum sustainable transfer rate of 110M/s. In comparison, my internet connection is rated at a maximum of 50M/s. Therefore, comparing based on maximum speeds, something running through the internet is going to take 2.2x the amount of time... and, statistically speaking, it's rare to get a sustainable connection speed at these rates, but I don't have access to average numbers.
OpenOffice 4.1.6 and LibreOffice 6.0.6.2 on Windows 7 Pro & Ultimate
If you believe your problem has been resolved, please go to your first post in this topic, click the Edit button and add [Solved] to the beginning of the Subject line.
User avatar
RusselB
Moderator

Posts: 5282
Joined: Fri Jan 03, 2014 7:31 am
Location: Sarnia, ON

Re: Severe perf degradation

Postby _savage » Sat Dec 27, 2014 2:23 am

Sorry, I should have been clearer. I ssh to that remote Linux server and run the Python script locally on that remote box. So network latency is out of that equation. (I'll update the question accordingly.)
Mac 10.14 using LO 6.2.5.2, Gentoo Linux using LO 6.2.4.2.0 headless.
_savage

Posts: 168
Joined: Sun Apr 21, 2013 12:55 am

Re: Severe perf degradation

Postby karolus » Sat Dec 27, 2014 9:35 am

_savage wrote: I ssh to that remote Linux server and run the Python script locally on that remote box. So network latency is out of that equation.

....But not the "network latency" triggered by ssh
AOO4, Libreoffice - 5.1 … 5.3.2.2 on Linux Mint17
User avatar
karolus
Volunteer

Posts: 851
Joined: Sat Jul 02, 2011 9:47 am

Re: Severe perf degradation

Postby _savage » Sat Dec 27, 2014 9:40 am

karolus wrote:....But not the "network latency" triggered by ssh


I don't follow. I have a standing ssh connection to some remote Linux host. On that Linux host runs OO in headless mode, and on that same host I open a Python interpreter and connect to OO. As far as that Python/OO interaction is concerned, they are both local on the same host; in fact, the Python code connects to "localhost:2002".

How does the network latency of ssh influence that local connection between the Python interpreter and OO?
Mac 10.14 using LO 6.2.5.2, Gentoo Linux using LO 6.2.4.2.0 headless.
_savage

Posts: 168
Joined: Sun Apr 21, 2013 12:55 am

Re: Severe perf degradation

Postby _savage » Sun Dec 28, 2014 11:19 pm

I don't think there is network overhead. Take a look at the attached Python script: it spins up an office instance and iterates over a test document. Because the test document is too large to attach to this post, I've uploaded it here. (It's a document of 5 x 10.000 lorem ipsum words, generated with the lipsum generator.)

Running that on my Mac locally takes about 1.5s. Then I remote into the Linux box and open a screen session, then

Code: Select all   Expand viewCollapse view
sleep 60 && PYTHONPATH=/usr/lib64/openoffice/program python3.4 ./lorem.py

and disconnect from the Linux box. So while the Python script iterates over the paragraphs of the test document, there is no network connection to begin with. The script runs for 45s!

The next logical step would be profiling, but before I begin digging deeper into this, I wonder if people can reproduce the slowdown.

Note The same slowdown can be measured running this on a local Linux box.
Attachments
lorem.py.bz2
Python script.
(964 Bytes) Downloaded 255 times
Last edited by _savage on Mon Dec 29, 2014 12:45 pm, edited 3 times in total.
Mac 10.14 using LO 6.2.5.2, Gentoo Linux using LO 6.2.4.2.0 headless.
_savage

Posts: 168
Joined: Sun Apr 21, 2013 12:55 am

Re: Severe perf degradation on Linux

Postby karolus » Mon Dec 29, 2014 11:55 am

Hallo

For me it seems very unusual on actual Linux'es to have a path /usr/lib64/openoffice/program ??

next Question: there is a hardcoded Mac-Path in your lorem.py that you're run on Linux, how should it work ??

The script runs for 45s!

the script runs for 45 sec or is that the duration from your:
Code: Select all   Expand viewCollapse view
print("Elapsed time: " + str(end_time - start_time))

?

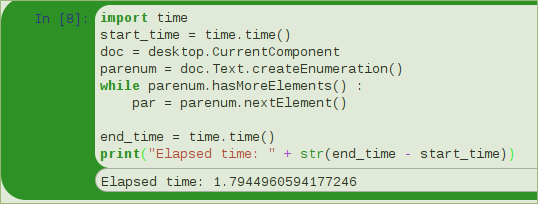

Local Test with your lorem.odt as Current Doc from an IPython notebook-session:


Karolus
AOO4, Libreoffice - 5.1 … 5.3.2.2 on Linux Mint17
User avatar
karolus
Volunteer

Posts: 851
Joined: Sat Jul 02, 2011 9:47 am

Re: Severe perf degradation on Linux

Postby _savage » Mon Dec 29, 2014 12:38 pm

karolus wrote:For me it seems very unusual on actual Linux'es to have a path /usr/lib64/openoffice/program ??

That's where things are installed on the Gentoo box. Ubuntu has a different path, I think. But while perhaps unusual, it doesn't really make a difference to the problem itself, or should it? ;-)

karolus wrote:next Question: there is a hardcoded Mac-Path in your lorem.py that you're run on Linux, how should it work ??

My bad, I updated the script. I had accidentally uploaded the unedited file from my Mac; of course, on Linux it just calls "soffice".

karolus wrote:
The script runs for 45s!

the script runs for 45 sec or is that the duration from your:
Code: Select all   Expand viewCollapse view
print("Elapsed time: " + str(end_time - start_time))

?

It's the output of that print statement, i.e. the loop runs for 45s on my Gentoo server, a Ubuntu native installation, and in a Ubuntu VM on Mac. Very consistently reproducible so far.

karolus wrote:Local Test with your lorem.odt as Current Doc from an IPython notebook-session:

That's what I see on my local Mac as well. What do you mean by IPython notebook, this one?

Karolus, what is your local office install, and out-of-the box or did you build it yourself?
Mac 10.14 using LO 6.2.5.2, Gentoo Linux using LO 6.2.4.2.0 headless.
_savage

Posts: 168
Joined: Sun Apr 21, 2013 12:55 am

Re: Severe perf degradation on Linux

Postby karolus » Mon Dec 29, 2014 3:23 pm

Hallo

What do you mean by IPython notebook, this one?

[1]Yes, it is.

[1]in this case mostly out of the box with the .deb packages from http://www.libreoffice.org/download/libreoffice-fresh/
It installs to /opt/libreoffice4.3/
Only for IPython notebook i need to extend PYTHONPATH in /opt/libreoffice4.3/program/python:
...
PYTHONPATH=$sd_prog:$sd_prog/python-core-3.3.3/lib:$sd_prog/python-core-3.3.3/lib/lib-dynload:$sd_prog/python-core-3.3.3/lib/lib-tk:$sd_prog/python-core-3.3.3/lib/site-packages:$HOME/miniconda3/envs/note/lib/python3.3:$HOME/miniconda3/envs/note/lib/python3.3/lib-dynload:/usr/local/lib/python3.3/dist-packages${PYTHONPATH+:$PYTHONPATH}
...

First i start the notebook via commandline:
Code: Select all   Expand viewCollapse view
/opt/libreoffice4.3/program/python -m IPython notebook


from notebook i use to start soffice as server:
Code: Select all   Expand viewCollapse view
from subprocess import Popen

officepath
= '/opt/libreoffice4.3/program/soffice'
calc = '--calc'
pipe = "--accept=pipe,name=abraxas;urp;StarOffice.Servicemanager"

Popen([officepath,calc, pipe])


and the connection to office-process with:
Code: Select all   Expand viewCollapse view
import uno
local
= uno.getComponentContext()
resolver = local.ServiceManager.createInstance("com.sun.star.bridge.UnoUrlResolver")

client = resolver.resolve("uno:pipe,"
                           "name=abraxas;"
                           "urp;"
                           "StarOffice.ComponentContext")

createUnoService = client.ServiceManager.createInstance

(desktop,
 file_access,
 pathsubstitution,
 mri,
 pipe,
 textout,
 textin,
 contentfactory) = map(   createUnoService,
            ("com.sun.star.frame.Desktop",
             "com.sun.star.ucb.SimpleFileAccess",
             "com.sun.star.util.PathSubstitution",
             "mytools.Mri",
             "com.sun.star.io.Pipe",
             "com.sun.star.io.TextOutputStream",
             "com.sun.star.io.TextInputStream",
             "com.sun.star.frame.TransientDocumentsDocumentContentFactory")
             )

(Here with some boilerplate, essentially in the last statement is only the desktop
AOO4, Libreoffice - 5.1 … 5.3.2.2 on Linux Mint17
User avatar
karolus
Volunteer

Posts: 851
Joined: Sat Jul 02, 2011 9:47 am

Re: Severe perf degradation on Linux

Postby _savage » Sat Jan 03, 2015 9:26 am

Karolus, I tried the LO from the debian packages as you suggested (on Ubuntu) and it still runs 46s. You're on Mint Linux?
Mac 10.14 using LO 6.2.5.2, Gentoo Linux using LO 6.2.4.2.0 headless.
_savage

Posts: 168
Joined: Sun Apr 21, 2013 12:55 am

Re: Severe perf degradation on Linux

Postby karolus » Sat Jan 03, 2015 9:58 am

_savage wrote:Karolus, I tried the LO from the debian packages as you suggested (on Ubuntu) and it still runs 46s. You're on Mint Linux?

Yes,as you could see in my signature, but it doesnt matter which desktop youre run, the .deb-Packages from LO come with all dependencies.
My guess - there is something other which causes this time latency.

Karolus
AOO4, Libreoffice - 5.1 … 5.3.2.2 on Linux Mint17
User avatar
karolus
Volunteer

Posts: 851
Joined: Sat Jul 02, 2011 9:47 am

Re: Severe perf degradation on Linux

Postby _savage » Sat Jan 03, 2015 4:23 pm

karolus wrote:My guess - there is something other which causes this time latency.Karolus

Do you see the slowdown by running just the default python, not using IPy Notebook? I mean, if you run

Code: Select all   Expand viewCollapse view
PYTHONPATH=/path/to/office/program python ./lorem.py

then how long does it take for that to complete? If I try this on a clean Mint Linux 17 ISO then I get the 45 sec instead of your 2 sec:

Code: Select all   Expand viewCollapse view
mint@mint ~/dev $ PYTHONPATH=/usr/lib/libreoffice/program python3.4 ./lorem.py
Spawning office instance pid=2901
Trying to connect to office socket.
Connected to office socket, closing test connection.
Elapsed time: 44.98345136642456

Other than the IPy Notebook, what's different on your machine?
Mac 10.14 using LO 6.2.5.2, Gentoo Linux using LO 6.2.4.2.0 headless.
_savage

Posts: 168
Joined: Sun Apr 21, 2013 12:55 am

Re: Severe perf degradation on Linux

Postby karolus » Sat Jan 03, 2015 8:28 pm

Ok, I've testet with your simplified lorem.py:
Code: Select all   Expand viewCollapse view
import socket
import errno
import subprocess
import time
import uno
import os




def main
():
    #soffice = 'soffice'
    soffice = '/opt/libreoffice4.3/program/soffice'
    p = subprocess.Popen([ soffice,
                          '--accept='
                          #"socket,host=localhost,port=2002"
                          "pipe,name=abraxas"
                          ";urp;StarOffice.Service.Manager",
                          "--headless"])

    print("Spawning office instance pid=" + str(p.pid))

    time.sleep(4)

    local
= uno.getComponentContext()
    resolver = local.ServiceManager.createInstance("com.sun.star.bridge.UnoUrlResolver")
    context = resolver.resolve(
                               #"uno:socket,host=localhost,port=2002;"
                               "uno:pipe,name=abraxas;"
                               "urp;StarOffice.ComponentContext")

    loremurl
= "file://%s" %( os.path.expanduser('~/lorem.odt'))
    desktop = context.ServiceManager.createInstance("com.sun.star.frame.Desktop")
    document = desktop.loadComponentFromURL( loremurl, "_blank", 0, ())

    start_time = time.time()

    parenum = document.Text.createEnumeration()
    while parenum.hasMoreElements() :
        par = parenum.nextElement()

    end_time = time.time()
    print("Elapsed time: %0.2f" %(end_time - start_time))

    p.terminate()

if __name__
== "__main__" :
    main()



Code: Select all   Expand viewCollapse view
...@... ~ $ /opt/libreoffice4.3/program/python lorem.py
Spawning office instance pid
=2754
Elapsed time
: 3.88
# the Version with pipe



...@... ~ $ /opt/libreoffice4.3/program/python lorem.py
Spawning office instance pid
=2874
Elapsed time
: 50.38
# and the Version with socket instead of pipe



Now I'm watch the same Timedifferences from inside IPython notebook-session if starting soffice-server in pipe-mode versus socket-mode.

Karolus
AOO4, Libreoffice - 5.1 … 5.3.2.2 on Linux Mint17
User avatar
karolus
Volunteer

Posts: 851
Joined: Sat Jul 02, 2011 9:47 am

Re: Severe perf degradation on Linux

Postby _savage » Sun Jan 04, 2015 3:07 am

Karolus, I think you've pointed out something very critical here! Socket mode versus pipe mode, and it makes a huge difference. Perhaps RusselB and Villeroy did have the right hint afterall?!

On the remote Gentoo Linux server
Pipe mode: Elapsed time: 0.5140466690063477 with 550 pars
Socket mode: Elapsed time: 45.658066272735596 with 550 pars

On the local Ubuntu Linux machine
Pipe mode: Elapsed time: 0.8761096000671387 with 550 pars
Socket mode: Elapsed time: 45.715266942977905 with 550 pars

On my Mac
Pipe mode: Elapsed time: 1.6583800315856934 with 550 pars
Socket mode: Elapsed time: 1.941413164138794 with 550 pars

This doesn't quite solve the problem of why using sockets on Linux is so much slower, but it does solve the larger problem of having an efficient connection from an UNO Py client to the office server.
Mac 10.14 using LO 6.2.5.2, Gentoo Linux using LO 6.2.4.2.0 headless.
_savage

Posts: 168
Joined: Sun Apr 21, 2013 12:55 am

Re: Severe perf degradation on Linux

Postby karolus » Sun Jan 04, 2015 1:38 pm

Hallo

BTW.: Did you make some tests without ssh, on Server something like:
Code: Select all   Expand viewCollapse view
    soffice = '/opt/libreoffice4.3/program/soffice'
    p = subprocess.Popen([ soffice,
                          '--accept='
                          "socket,host=192.168.2.100,port=2002" #your local netmask?
                          ";urp;StarOffice.Service.Manager",
                          "--headless"])


and from other machine in local net:

Code: Select all   Expand viewCollapse view
    local = uno.getComponentContext()
    resolver = local.ServiceManager.createInstance("com.sun.star.bridge.UnoUrlResolver")
    context = resolver.resolve(
                               "uno:socket,host=192.168.2.22,port=2002;" #the server address?
                               "urp;StarOffice.ComponentContext")


??
AOO4, Libreoffice - 5.1 … 5.3.2.2 on Linux Mint17
User avatar
karolus
Volunteer

Posts: 851
Joined: Sat Jul 02, 2011 9:47 am

Re: Severe perf degradation on Linux

Postby _savage » Sun Jan 04, 2015 4:41 pm

I ran my tests inside of a disconnected screen instance, so no ssh at that point. However, I used "localhost" instead of the IP to address the host. And all tests always run on the same machine, clients never connect to the office instance over a physical network.
Mac 10.14 using LO 6.2.5.2, Gentoo Linux using LO 6.2.4.2.0 headless.
_savage

Posts: 168
Joined: Sun Apr 21, 2013 12:55 am

Re: Severe perf degradation on Linux

Postby _savage » Sat Jan 10, 2015 3:54 pm

After much discussion in different places, I was able to resolve this problem. The hint came from this forum answer. By using the following:

Code: Select all   Expand viewCollapse view
uno:socket,host=localhost,port=2002,tcpNoDelay=1

I was able to run the test document in mere 0.9s rather than 45s. It seems that the culprit was the default packet routing under Linux, and setting the TCP_NODELAY flag disabled the default packet buffering, thus speeding up the connection.
Mac 10.14 using LO 6.2.5.2, Gentoo Linux using LO 6.2.4.2.0 headless.
_savage

Posts: 168
Joined: Sun Apr 21, 2013 12:55 am

Re: [Solved] Severe perf degradation on Linux

Postby _savage » Mon Jan 12, 2015 1:24 pm

Mac 10.14 using LO 6.2.5.2, Gentoo Linux using LO 6.2.4.2.0 headless.
_savage

Posts: 168
Joined: Sun Apr 21, 2013 12:55 am


Return to Macros and UNO API

Who is online

Users browsing this forum: No registered users and 7 guests
